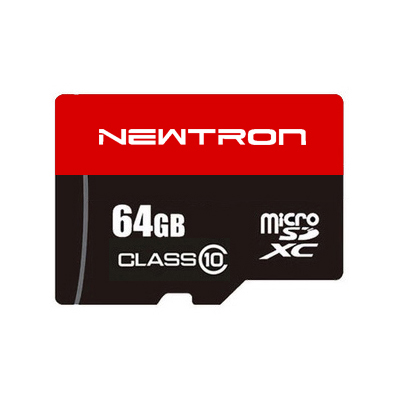

MicroSD memory Card



microSD card (Also known as: "TransFlash") is one of the smallest flash memory cards on the market today. Smaller than miniSD cards, and also based on the SD card format, microSD memory cards measure roughly 15mm x 11mm in size - about the size of a little finger fingernail. This makes them ideal for use in mobile phones. There are adapters which allow a microSD card to be used in devices intended for SD, miniSD, Memory Stick Duo and even USB cards. The newer microSDHC format has been developed to allow for cards of up to 32GB in size.





  • Only 1/4 the size of a standard SD card, but with all the same features and performance
  • Capacity : 4GB - 256GB
  • Flash Memory: Micron/Intel/Samsung/Toshiba
  • Controller: SMI or Alcor
  • Size: 11mm x 15mm x 1.0mm
  • RoHS compliant products
  • Hi-Speed USB 2.0 compliant; backward compatible with USB 1.1
  • True Plug and Play functionality
  • Built-in Error Correcting Code (ECC) to detect and correct transfer errors
  • Durability: 10,000 cycles
  • Working Temperature : -25°C (-13°F) to 85°C (185°F)
  • Operating Voltage: 2.7V~3.6V
  • Weight: 0.5g

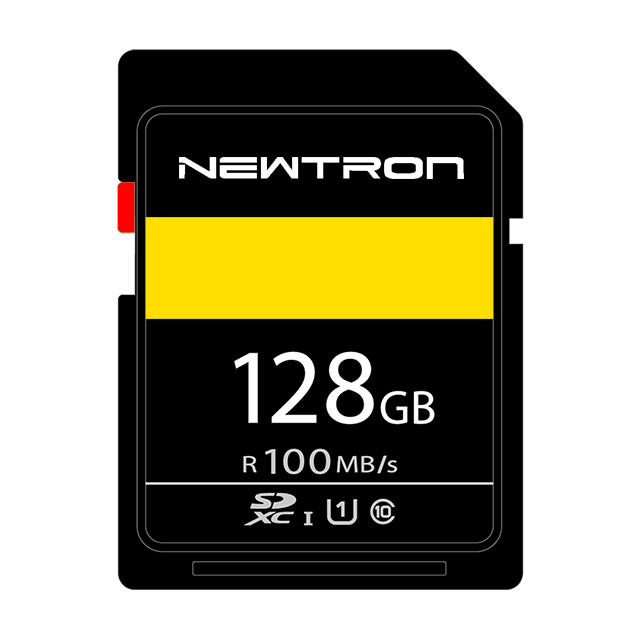

SD memory Card



The SD Card is developed to provide an inexpensive, mechanically robust storage medium in card form for consumer multimedia applications. Low power consumption and wide supply voltage range favor mobile and battery-powered applications such as audio players, organizers, cellular phone, electronic dictionaries, PDAs, camcorders and digital cameras By using effective data compression schemes such as MPEG, the SD Card provides enough capacity for all kinds of multimedia data such as program, text, music, voice, image and video.



  • Secure Digital Card interface standard
  • Capacity : 4GB – 256GB
  • Flash Memory: Micron/Intel/Samsung/Toshiba
  • Controller: SMI or Alcor
  • Module size: 32mm x 24mm x 2.1mm
  • Low power consumption
  • Mechanical write-protection switch
  • RoHS compliant products
  • Hi-Speed USB 2.0 compliant; backward compatible with USB 1.1
  • True Plug and Play functionality
  • Built-in Error Correcting Code (ECC) to detect and correct transfer errors
  • Durability: 10,000 cycles
  • Working Temperature : -25°C (-13°F) to 85°C (185°F)
  • Operating Voltage: 2.7V~3.6V
  • Weight: 2g
