    U-DIMM
    SO-DIMM
    RDIMM




DDR SODIMM

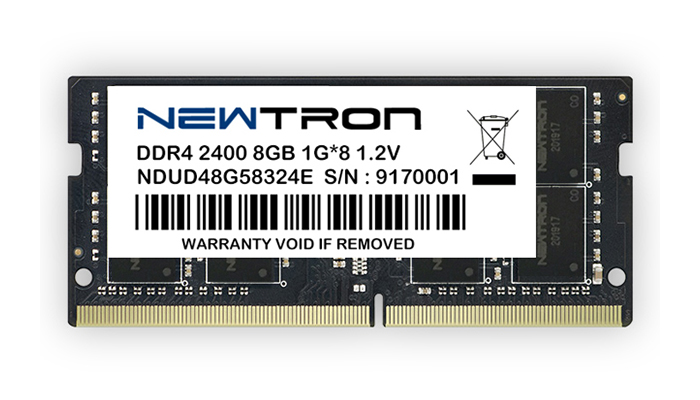

 DDR4

High-performing memory empowers faster, powerful solutions. DDR4 delivers top speed with better bandwidth and reliability using less energy. DDR4 transfers more data faster than ever before, offering 4 bank groups (total 16 banks) to reduce interleaving delays, plus 3,200 Mbps bandwidth and 1TB/s system memory. 1.2V low operating voltage and Pseudo Open Drain (POD) interface enables lower power consumption, using 25% less energy.

  • Spec: 260 pin unbuffered SO-DIMM Non ECC
  • Capacity: 4GB / 8GB / 16GB
  • Frequency: 2133 / 2400 / 2666
  • Clock: CL15-15-15-36 / CL16-16-16-39 / CL19-19-19-43
  • Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
  • Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
  • Voltage: 1.2V
  • RoHS compliant products

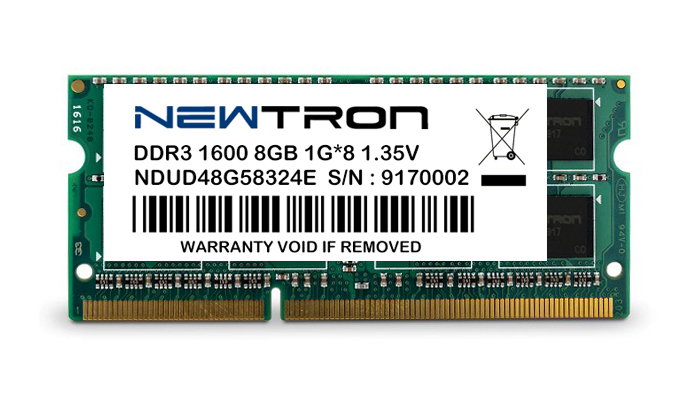

 DDR3

DDR3 enhanced bandwidth and reliabilty drives a broad range of applications such as notebooks, desktops, and industrial solutions including automotive, all at double the speed of DDR2.

  • Spec: 204 pin unbuffered SO-DIMM Non ECC
  • Capacity: 4GB / 8GB
  • Frequency: 1333 / 1600
  • Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
  • Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
  • Voltage: 1.5V (or 1.35V)
  • RoHS compliant products
